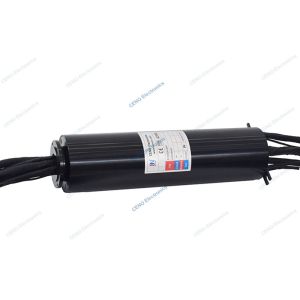

    Encoder Signal Integrated Electrical Slip Ring Assembly With Multi Channels

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-84P
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Encoder Signal Integrated Electrical Slip Ring Assembly With Multi Channels

    Encoder Signal Integrated Electrical Slip Ring assembly with Multi-channels


    ECN000-84P is CENO Encoder integrated slip ring with multi-channels automatic industrial applications, CENO has produce and manufacture around 5000 designs in past twenty years. Most of these products are developed for rugged environments and demanding requirements, take Encoder integrated slip ring for example, the typical applications include Electro-optic systems, Engineering Machinery, Ship crane, Offshore equipment or Oil well drilling. Most of the parameters as channels, circuits, protection grade, installation and integrated signals are optional. More information please contact us.


    Features

    • Stable performance and a variety of functions
    • Multi-channels is optional
    • Can integrated various data
    • Install easily & less maintenance

    Applications

    • Automatic machine
    • Engineering Machinery
    • Test Machinery
    • Robot & safety system
    • Unmanned vehicles

    Optional

    • Circuits, Voltage, Current
    • Signal types
    • Contact / Housing Materials
    • Protection grade
    • Working speed & temperature


    Specification

    ECN000-84P

    Specification
    Current & Circuits8circuits*25A; 8circuits*15A; 16circuits*10A; 29circuits*5A; 8circuits*2A; 2circuits*1A; 2Group*Encoder signal
    Rating Voltage0~380VAC/VDC
    Dielectric strength

    ≥1500VAC@50Hz

    ≥500VAC@50Hz

    Isolation resistance

    ≥500MΩ@500VDC

    ≥100MΩ@300VDC

    Electrical Noise30mΩ (50rpm)
    Contact materialPrecious Metal / Gold to gold
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP54
    Operating speed0~300rpm

    Lead wire length

    Rotor : 1500mm; Stator : 3000mm

    External diameterØ99mm

    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
