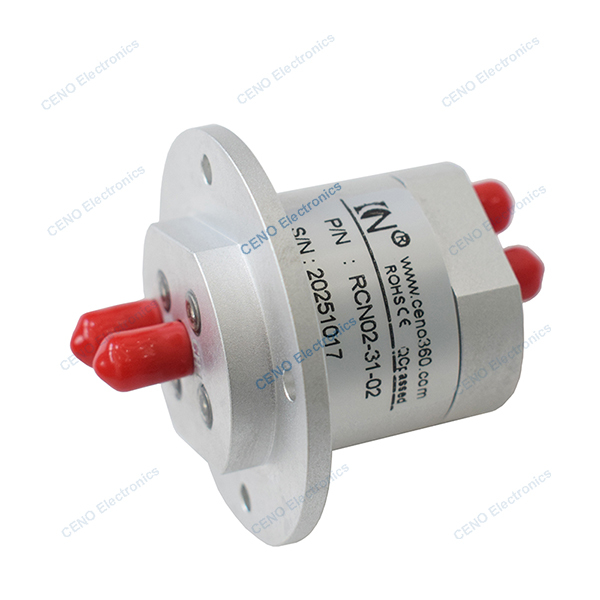

    2 Channels Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature

    Ask Lasest Price
    Brand Name : CENO
    Model Number : RCN02-31-02
    Certification : ISO9001,CE,RoHS,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal,, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    2 Channels Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature

    2 Channels Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature


    RCN02-31-02 is CENO 2 channels coaxial Radio Frequency Rotary Joint with frequency range DC-2GHz and 29-31GHz. RF rotary joints are used in continuous rotation applications to transmit high-frequency and high-speed signals between stationary and rotating components. RF rotary joints feature a compact structure, stable performance, excellent shielding, strong anti-interference capabilities, and ease of integration for different application. For more information please contact us.



    Specification

    RCN02-31-02 Specification
    ChannelsCH1 (TX)CH2 (TX)
    Interface typeSMA 2.92-K(50Ω)SMA (50Ω)
    Frequency range29-31GHzDC-2GHz
    Peak Power,max50W30W
    Average Power,max25W10W
    VSWR,max1.61.5
    VSWR-wow,max0.150.2
    Insertion Loss,max0.8dB0.6dB
    Insertion Loss- wow,max0.1dB0.1dB
    DC Load Capacity50V@1A
    Insolation,min50dB
    Rotating Speed,max60rpm
    Life Time,min5 million
    Starting Torque≤0.3Nm
    Temperature-40℃ ~ + 70℃(W); -55℃ ~ + 85℃(S)
    Humidity95%
    IP Protection gradeIP41
    Surface treatmentConductive oxidation
    Body MaterialAluminium alloy
    AltitudeUp to 3Km
    Shock / VibrationPer RTCA DO-160G (TBD), standard for airborne systems

    Features

    • Integrate design combine power signal and 4 channels RF joint
    • Simply system structure & optimize wire & suit low temperature
    • Install easy & Free maintenance

    Applications

    • Defense & aerospace
    • High-end industry automation
    • Industrial robot
    • Satellite communication table
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Channels & Frequency range
    • Contact / Housing Materials
    • Connector type & IP Grade
    • Working speed & temperature


    Outline drawing






    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
