Low Temperature Waterproof Slip Ring with IP65 & Ethernet signal for Industry

CENO Electronics Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Low Temperature Waterproof Slip Ring with IP65 & Ethernet signal for Industry from wholesalers

    Buy cheap Low Temperature Waterproof Slip Ring with IP65 & Ethernet signal for Industry from wholesalers
    • Buy cheap Low Temperature Waterproof Slip Ring with IP65 & Ethernet signal for Industry from wholesalers
    • Buy cheap Low Temperature Waterproof Slip Ring with IP65 & Ethernet signal for Industry from wholesalers
    • Buy cheap Low Temperature Waterproof Slip Ring with IP65 & Ethernet signal for Industry from wholesalers

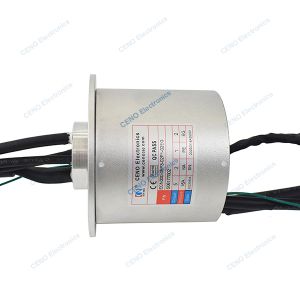

    Low Temperature Waterproof Slip Ring with IP65 & Ethernet signal for Industry

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-05P3-02P1-02EG
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Low Temperature Waterproof Slip Ring with IP65 & Ethernet signal for Industry

    Low Temperature Waterproof Slip Ring with IP65 & Ethernet signal for Industry


    ECN000-05P3-02P1-02EG is CENO high protection slip ring with electric power and Ethernet signals. Ethernet technology is currently the most commonly used network technology, which provides a communication bandwidth of 1 GBPS for the Internet and communication systems. It has the simplicity of Ethernet and the economy of a similar rate communication system. CENO provide kinds of combined Ethernet signal slip rings. More special applications please contact us.


    Features

    • Can transmit 100M/1000M Ethernet
    • No electromagnetic interference, Comply with EMC requirements
    • Stable transmitting, no string code, can be integrate various signal /data

    Applications

    • Automatic machine
    • Turntable testing machine
    • Packing equipment
    • Filling machinery
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Structure
    • Contact / Housing Materials
    • Protection grade
    • Working speed & temperature


    Specification

    ECN000-05P3-02P1-02EG Specification
    Current & Circuits5 * 16A; 2 * 6A; 1*PE; 2 * 1000M Ethernet signal
    Rating Voltage0 ~ 415 VAC/VDC
    Dielectric strength≥1500VAC@50Hz; ≥300VAC@50Hz
    Isolation resistance≥500MΩ@500VDC; ≥200MΩ@300VDC
    Contact resistance wave≤ 30mΩ
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP65
    Operating speed0~20rpm
    Outer diameterØ99mm
    Contact materialPrecious Metal / Gold to gold
    Housing materialAluminium Alloy
    Rotary Torque≤ 3N*m
    Lead wire lengthAs customized

    Outline drawing



    Application


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
